For mid-level, senior, and staff software engineers, the System Design Interview is universally recognized as the single most decisive factor in determining leveling, title, and total compensation. Unlike coding rounds where solutions are bounded by algorithms and data structures with definite Big-O bounds, system design interviews are open-ended, ambiguous architectural simulations. Interviewers do not evaluate whether you have memorized a single rigid diagram; they evaluate how systematically you scope requirements, navigate technical trade-offs, estimate scale, and design resilient distributed architectures.
Far too many candidates fail by immediately jumping into drawing database boxes before understanding whether the system is write-heavy or read-heavy, or by proposing distributed caches without addressing cache invalidation and concurrency races. In this comprehensive master guide, we outline a repeatable 8-Step System Design Framework, walk through back-of-the-envelope capacity calculations, examine core distributed building blocks (load balancers, CDNs, message queues, and sharded databases), and break down the timeless principles of the CAP theorem. Benchmark your target compensation with our Tech Salary & Bootcamp ROI Calculator, or optimize your tech application assets with our Tech Resume ATS Guide.
| Framework Step | Candidate Objective | Key Deliverable to Interviewer | Recommended Time Allocation |
|---|---|---|---|
| Step 1: Scoping Requirements | Clarify functional features, non-functional constraints, and edge boundaries | List of 3–4 core user stories + SLA latency & availability targets | Minutes 0–5 (5 min) |
| Step 2: Capacity Estimation | Back-of-the-envelope math: QPS, network bandwidth, storage growth | Read/Write QPS, 5-year storage estimates, memory cache size | Minutes 5–10 (5 min) |
| Step 3: API & Data Model Design | Define public contract endpoints and database schemas | REST/gRPC signatures + Relational vs. NoSQL entity schemas | Minutes 10–15 (5 min) |
| Step 4: High-Level Architecture | Draft end-to-end component flow from client to persistent disk | Clean architectural block diagram (Client $ o$ Gateway $ o$ DB) | Minutes 15–25 (10 min) |
| Step 5: Deep-Dive Component Design | Zoom into bottleneck areas requested by interviewer | Caching strategies, database indexing, consensus algorithms | Minutes 25–38 (13 min) |
| Step 6: Bottlenecks & Failure Modes | Identify single points of failure (SPOF) and disaster recovery | Failover mechanisms, circuit breakers, rate limiting, monitoring | Minutes 38–45 (7 min) |
Step 1 & 2: Scoping Requirements and Capacity Estimation
Never draw a single architectural box without establishing clarity. Begin by segmenting requirements into Functional Requirements (what the user can do, e.g., submit a payment, shorten a URL, stream a video) and Non-Functional Requirements (system characteristics: high availability 99.99%, low latency <100ms, strong vs. eventual consistency, data retention period).
Back-of-the-Envelope Estimation: The Rule of Numbers
Interviewers expect candidates to calculate rough Orders of Magnitude quickly. Memorize these fundamental rule-of-thumb conversions:
- $1 ext{ day} pprox 86,400 ext{ seconds} pprox 100,000 ext{ seconds}$ (simplifies arithmetic significantly).
- $100 ext{ Million Daily Active Users (DAU)} imes 10 ext{ actions/day} = 1 ext{ Billion actions/day}$.
- $ ext{Average QPS} = 1,000,000,000 / 100,000 = 10,000 ext{ Queries Per Second (QPS)}$.
- $ ext{Peak QPS} = ext{Average QPS} imes 2 ext{ to } 3 = 20,000 ext{ to } 30,000 ext{ QPS}$.
- Storage Estimation: If each user record is $500 ext{ bytes}$, $100 ext{M new records/day} = 50 ext{ GB/day} pprox 18 ext{ TB/year} pprox 90 ext{ TB across a 5-year retention horizon}$.

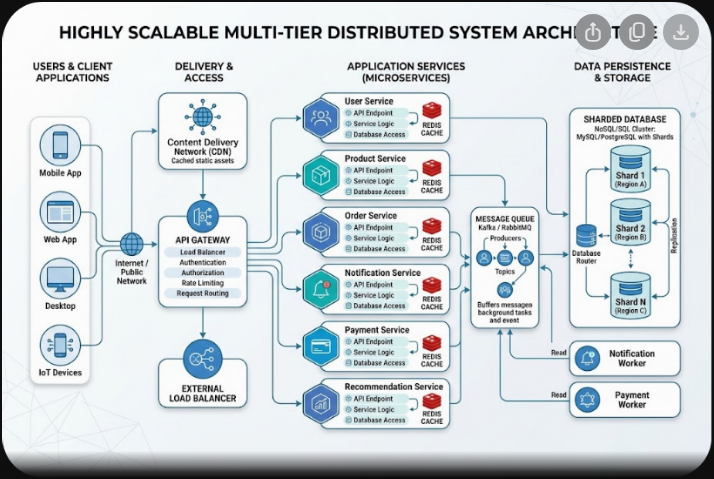

Step 4 & 5: High-Level Architecture & Core Distributed Building Blocks
Modern scalable platforms decouple responsibilities into distinct modular tiers.
1. Load Balancers & Reverse Proxies
Traffic from mobile and web clients hits an external Layer 4 (Transport / TCP) or Layer 7 (Application / HTTP) Load Balancer (such as NGINX, HAProxy, or AWS ALB). Load balancers distribute requests across stateless application servers using algorithms like Round Robin, Least Connections, or Consistent Hashing for session persistence. They also handle SSL/TLS termination, health checks, and DDoS mitigation.
2. Caching Strategies: Cache-Aside vs. Write-Through
To prevent millions of read queries from crushing database clusters, high-speed in-memory caches (Redis or Memcached) are deployed adjacent to application services:
- Cache-Aside (Lazy Loading): The application first checks the cache. On a cache hit, data is returned instantly. On a cache miss, data is queried from the database, written into the cache, and returned. This is the most common pattern for read-heavy systems.
- Write-Through: Data is written simultaneously into the cache and the database in a single transaction. Guarantees cache freshness at the expense of higher write latency.
- Write-Behind (Write-Back): The application writes directly to the cache, which asynchronously batches and flushes writes to the database. Delivers ultra-fast write performance but introduces data loss risk if the cache crashes before flushing.
3. Asynchronous Decoupling with Message Queues
When operations are computationally expensive or non-blocking (such as sending confirmation emails, generating video thumbnails, or processing payment settlement batches), application servers publish events to distributed message brokers (Apache Kafka, RabbitMQ, or AWS SQS). Message queues absorb traffic spikes, decouple producers from consumers, and enable independent horizontal scaling.
Navigating Trade-Offs: The CAP Theorem & Database Selection
In distributed system design, there is no such thing as a “perfect” database. Every architectural choice requires an intentional trade-off between consistency, availability, and latency.
The Reality of Network Partitions

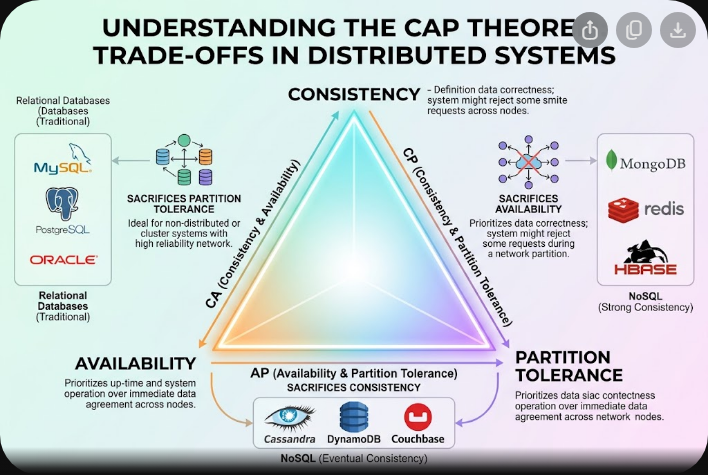

The CAP Theorem proves that in any distributed data store experiencing a network partition (communication drop between nodes):
- Consistency (CP Systems): The system refuses to process writes or reads if it cannot guarantee that all replicas have the identical, latest data. Choose CP for financial ledgers, banking transfers, and inventory reservations where reading stale data causes catastrophic monetary errors (e.g., Google Spanner, CockroachDB, HBase).
- Availability (AP Systems): Every non-failing node returns a response, even if the data returned is temporarily stale due to replication lag. Choose AP for social media feeds, messaging apps, and metrics dashboards where high availability is paramount (e.g., Apache Cassandra, DynamoDB, Couchbase).
Database Scaling: Replication, Partitioning & Sharding
When data volume outgrows a single vertical database server, engineers employ three complementary horizontal scaling techniques:
- Read Replicas (Primary-Replica Replication): All writes flow to a single primary database node, which asynchronously streams write-ahead logs (WAL) to multiple read replica nodes. Perfect for systems with 95% read traffic.
- Horizontal Sharding: The database table is horizontally partitioned across multiple physical database servers based on a designated Shard Key (e.g.,
user_id % num_shards). Selecting an evenly distributed shard key is critical to prevent “hot spotting” (where one celebrity user overwhelms a single shard). - Consistent Hashing: Avoids catastrophic data reshuffling when adding or removing database nodes. By mapping both nodes and keys onto a virtual 360-degree hash ring, adding a new node requires migrating only $k/N$ keys on average.
For more interview guides, read our complete breakdown of Data Analyst Interview Questions, our guide on DevOps Roadmap for Beginners, and our Cloud Engineer vs DevOps Engineer Career Guide.
Frequently Asked Questions (FAQ)
How long is a typical System Design interview round?
Standard system design interview rounds last between 45 to 60 minutes. Candidates should aim to spend 5 minutes on requirements, 5 minutes on estimations, 15 minutes on high-level architecture, 15 minutes on deep dives, and 5 minutes on failure modes and edge cases.
What is the most common mistake made by candidates in System Design interviews?
The number one mistake is failing to ask clarifying questions and diving directly into drawing component diagrams. Interviewers intentionally provide vague prompts (e.g., “Design Twitter”) to test your ability to scope requirements, identify trade-offs, and establish concrete boundaries.
What is the difference between Vertical Scaling and Horizontal Scaling?
Vertical scaling (scaling up) involves adding more CPU, RAM, or disk to an existing single server. Horizontal scaling (scaling out) involves adding more commodity server instances behind a load balancer. Modern distributed architectures prioritize horizontal scaling due to hardware limits and high-availability failover needs.
What is the difference between Strong Consistency and Eventual Consistency?
Strong consistency ensures that every read immediately returns the most recent write across all nodes. Eventual consistency allows temporary replication lag, guaranteeing only that all nodes will eventually converge on the same data if no new updates are made.
